PTSTR make remote monitoring & control system is specially designed for the monitoring & controlling of the complete cathodic protection system from the remote location.
FEATURES AND BENEFITS
1. TYPE OF UNIT
a) Remote Monitoring Unit (V-1.0) BASIC: Remote Monitoring Unit meticulously designed to cater to the monitoring and logging requirements of cathodic protection (CP) systems. This sophisticated unit excels in capturing and recording a comprehensive array of parameters such as PSP (pipe-to-soil potential), voltage, current, and all digital alarms associated with CP systems.
b) Remote Monitoring & Control System (V-2.0) ADVANCED: In additional to all the features mentioned in the above variant (V-1.0) this variant provides the capability
to control the DC voltage and DC current of the rectifiers
c) Remote Monitoring & Control System (V-3.0) PREMIUM: In additional to all the features mentioned in the above variant (V-2.0), this variant provides the empowerment the users the ability to exercise precise control over the Auto reference mode, DC voltage, and DC current of the rectifiers. The special feature in this variant is the control in Auto ref mode, which is rarely offered in the industry
d) Remote Monitoring & Control System (V-4.0) PREMIUM HYBRID: Our premium hybrid remote monitoring and control system has been carefully designed to meet the complex demands of comprehensive monitoring, controlling, and logging in cathodic protection (CP) systems. It is specifically tailored to facilitate upgrades, modifications, and rectifications necessary for operating in auto reference mode, without the need for any additional analog circuit or outdated control card.
e) Remote Monitoring & Control System (V-5.0) for mounded vessels: Remote Monitoring & control system designed to cater to the monitoring and logging requirements of cathodic protection (CP) systems of mounded vessels with wire/ofc communication. This variant provides the empowerment the users the ability to exercise precise control over the DC voltage, and DC current of the rectifiers from specified PC having SCADA software.
2. OPERATIONAL CLIMATIC CONDITION
a) RMCPs are designed to work under severe environmental conditions with maximum ambient temperature of 50°C and humidity of 95% (non condensing).
3. PROTECTION
a) Normally we provide following protections:
MCBs with HRC Fuses in AC Input power supply.
Glass cartridge fuses in the all auxiliary power lines to control circuit
Isolated Signal converter transducer used for the entire Monitoring & control interface.
4. ENCLOSURES

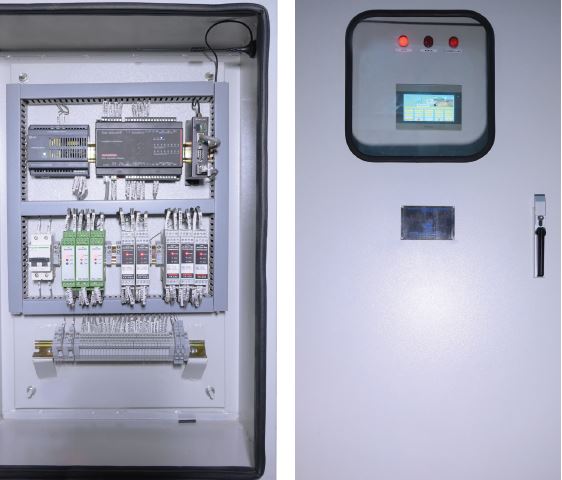

a) Enclosures are fabricated from 2.5 mm / 2.0mm / 1.5 mm CRCA sheet and confirming to IP55 degree of protection. Lockable doors shall be provided in the Front and Back. Polycarbonate window is provided viewing meters and indications.
5. FINISH
a) Powder coating / Paint of required shade and thickness with proper treatment to suit corrosive/site conditions.
6. AC INPUTS
a) Single phase 50 Hz/ 60 Hz
7. MONITORING PARAMETERS (AS PER CUSTOMER CHOICE)
a) Analogue Parameters:-
CP System Input Voltage : 0 to 750 V AC
Input current : as with suitable Cts
Output Voltage: As per output rating
Output Current : As with suitable shunt
Cathodic protection Potential : 0 to ± 19.99 V DC (up to 50 Nos Reference Cell)
b) Digital Parameters:-
Mains ON Auto Mode Manual Mode
Auto Ref. mode
CVCC mode
Under protection Alarm
Over protection Alarm
All Ref. Fail Alarm
Current Limit Alarm
8. CONTROLLING PARAMETERS (AS PER CUSTOMER CHOICE)
a) Analogue Parameters:-
DC Output Voltage: As per rating
DC Output Current : As per rating
Automated cyclic Current interrupters
b) Digital Parameters:-
Mains ON Auto Mode Manual Mode
Auto Ref. mode
CVCC mode
Current Limit Alarm
External cyclic Current
Interrupters
